1/2/6/10/20pcs Dsservo Waterproof Servo DS3225 25KG High Speed 180/270/360 Degree Metal Gear Digital Servo for 1/8 1/10 RC Cars
1/2/6/10/20pcs Dsservo Waterproof Servo DS3225 25KG High Speed 180/270/360 Degree Metal Gear Digital Servo for 1/8 1/10 RC Cars
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: YoufangSmart
Feature 10: 25KG
Feature 11: Metal Servos All-iron servo
Feature 12: Digital Servo
Feature 13: Metal Gear Motor for Robotic Arm Car RC Helicopter
Feature 14: Arduino UNO DIY
Feature 2: School experiments
Feature 3: Programmable toys
Feature 4: Servo DS3225 180,360 degrees
Feature 5: Servo DS3225 180,360 degrees
Feature 6: Servo DS3225
Feature 7: 4 DOF Robotic arm
Feature 8: 6 DOF Robotic arm
Feature 9: 1/2/4/6/10pcs
Features1: Raspberry Pi, Arduino, STM32
For Vehicle Type: Cars
Four-wheel Drive Attributes: Assemblage
High-concerned chemical: none
Material: Metal
Model Number: DS3218MG
Origin: Mainland China
Quantity: 1 pcs
RC Parts & Accs: Servos
Recommend Age: 12+y,14+y,6-12Y
Remote Control Peripherals/Devices: Servos,Remote Controller
Technical parameters: KV1100
Tool Supplies: Assembled class
Upgrade Parts/Accessories: tires
Use: Vehicles & Remote Control Toys,Vehicles & Remote Control Toys
Youfang Smart is smarter, tech, and healthier
We are the sales No.1 in the robot industry, specializing in the development of science and technology, technology, education and teaching enterprises. This robot arm servo is a new, very intelligent teaching arm servo designed by our institute, but also the enlightenment of children and engineers to learn education, we will release more technology, education, health new products from time to time, can be used as children's toy gifts, adult learning demoboard.I believe you will like our arm servo.
By the way, if you like our store, Please add our store to your Favorite Stores, You can get our New arrival and Discount information in time.
1/2/6/10/20pcs Dsservo Waterproof Servo DS3225 25KG High Speed 180/270/360 Degree Metal Gear Digital Servo for 1/8 1/10 RC Cars
Specification:
[ Read it carefully before you buy]
Features:
Large torque - maximum torque can up to 25kg.cm (6.8V)

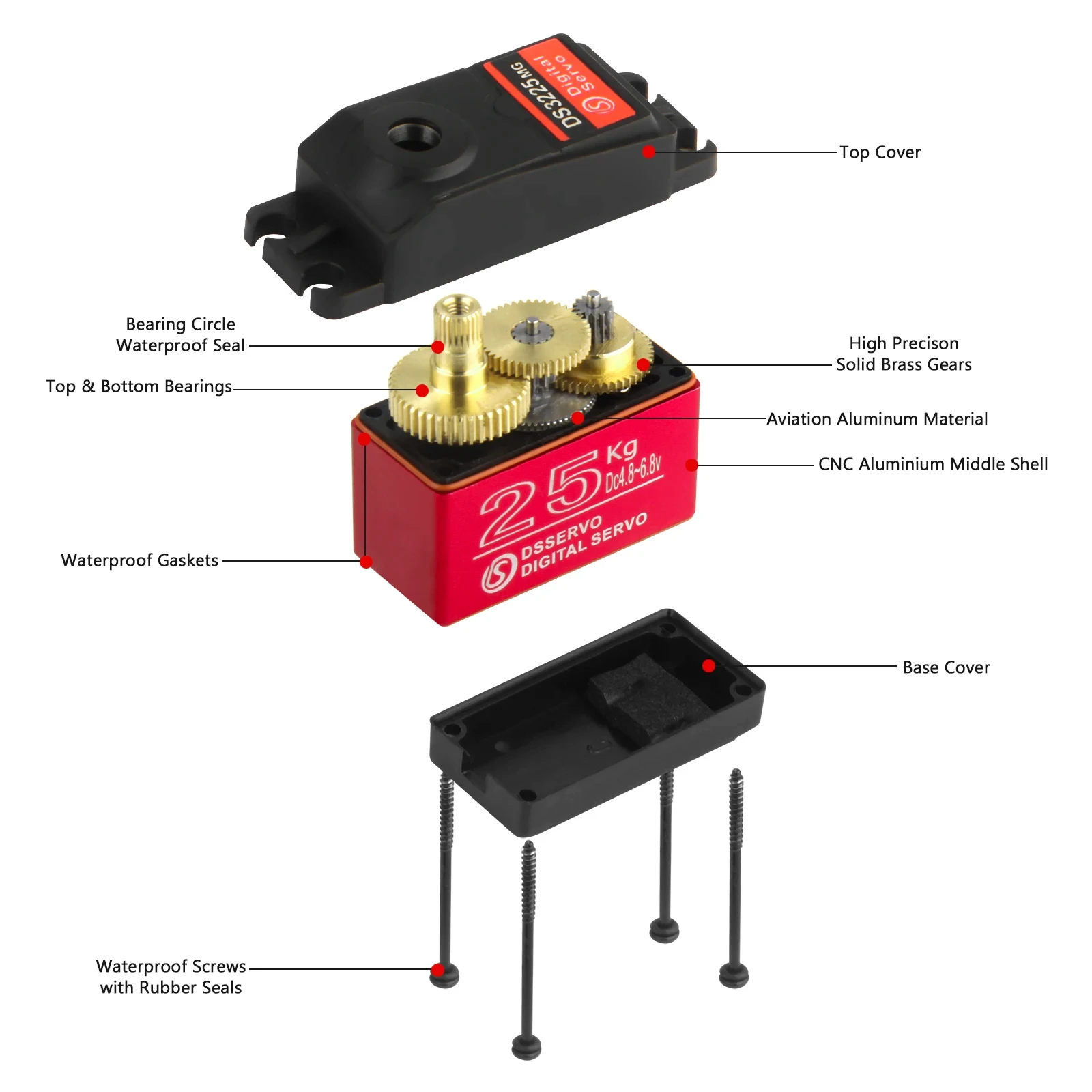

High-precision metal gear with hard anodizing for better accuracy and longer service life
CNC aluminium middle shell enhances heat dissipation and ensures the servo motor can work well

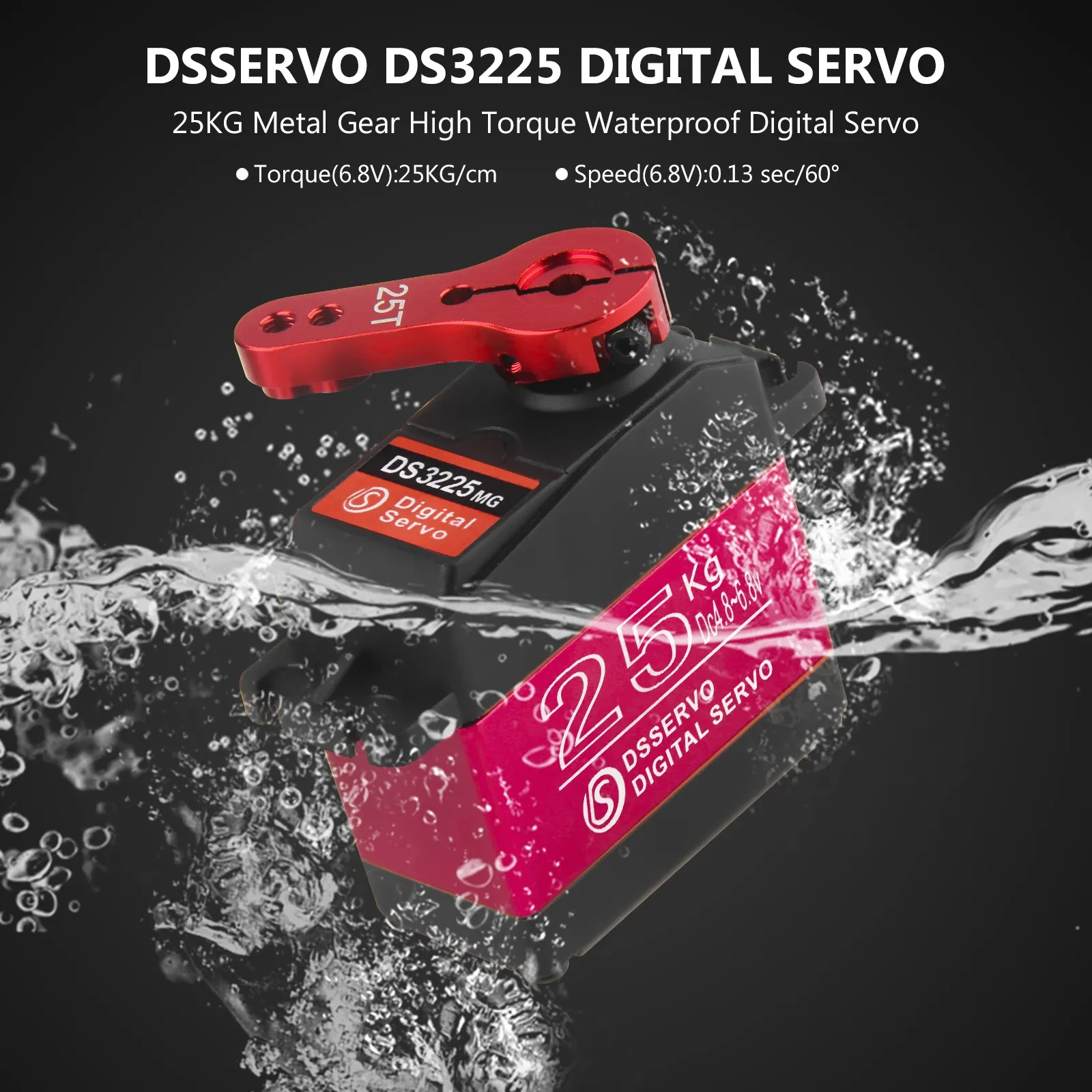

Water proof rubber seals screws, made of first-grade material ensure the longevity of the products
Good performance digital standard servo, which can be a common use for robots, mechanical arms, climbing cars and remote control toys
Great choice for university professors and students who are interested in developing software for robot parts

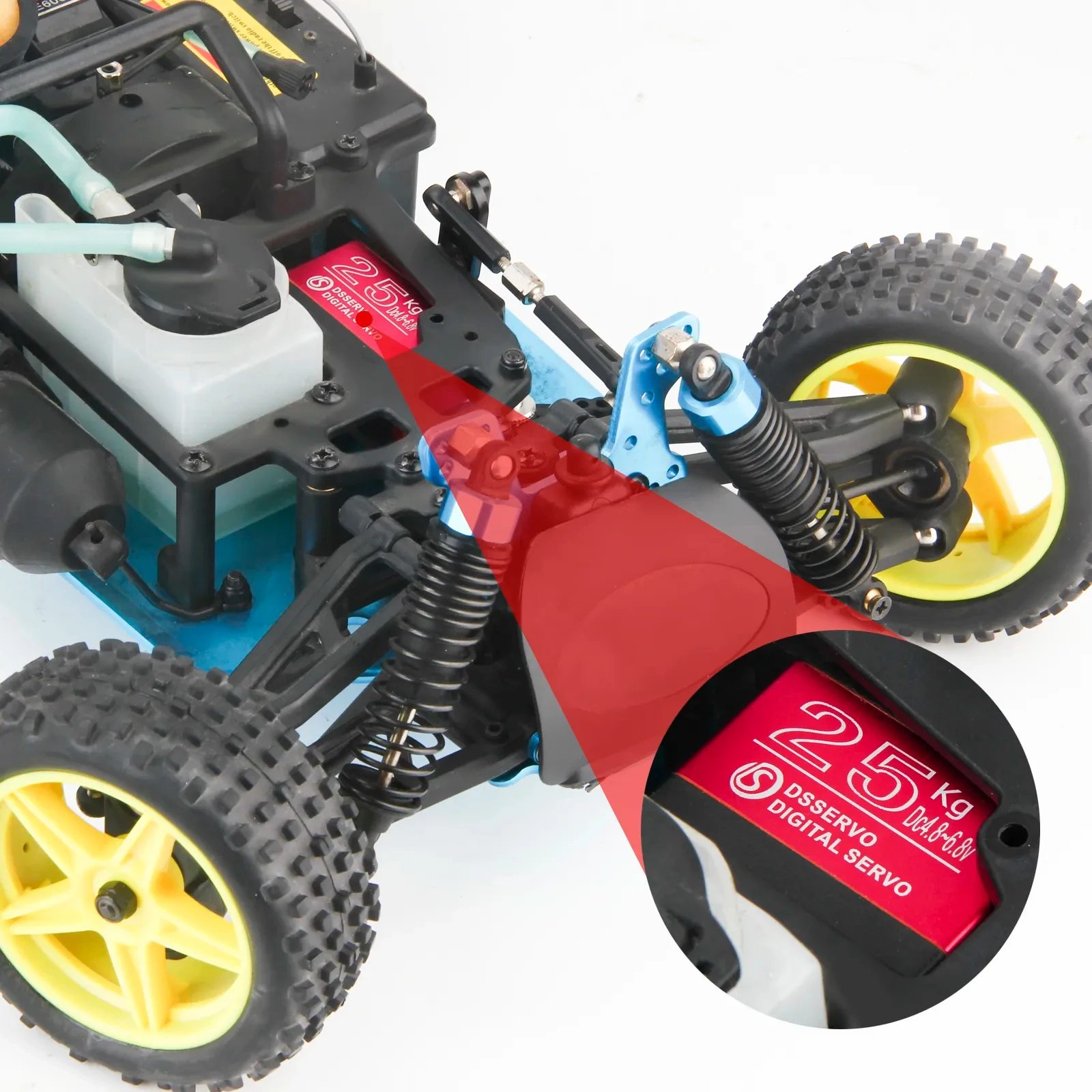

Tailored for RC hobbyist to provide different experience and delight

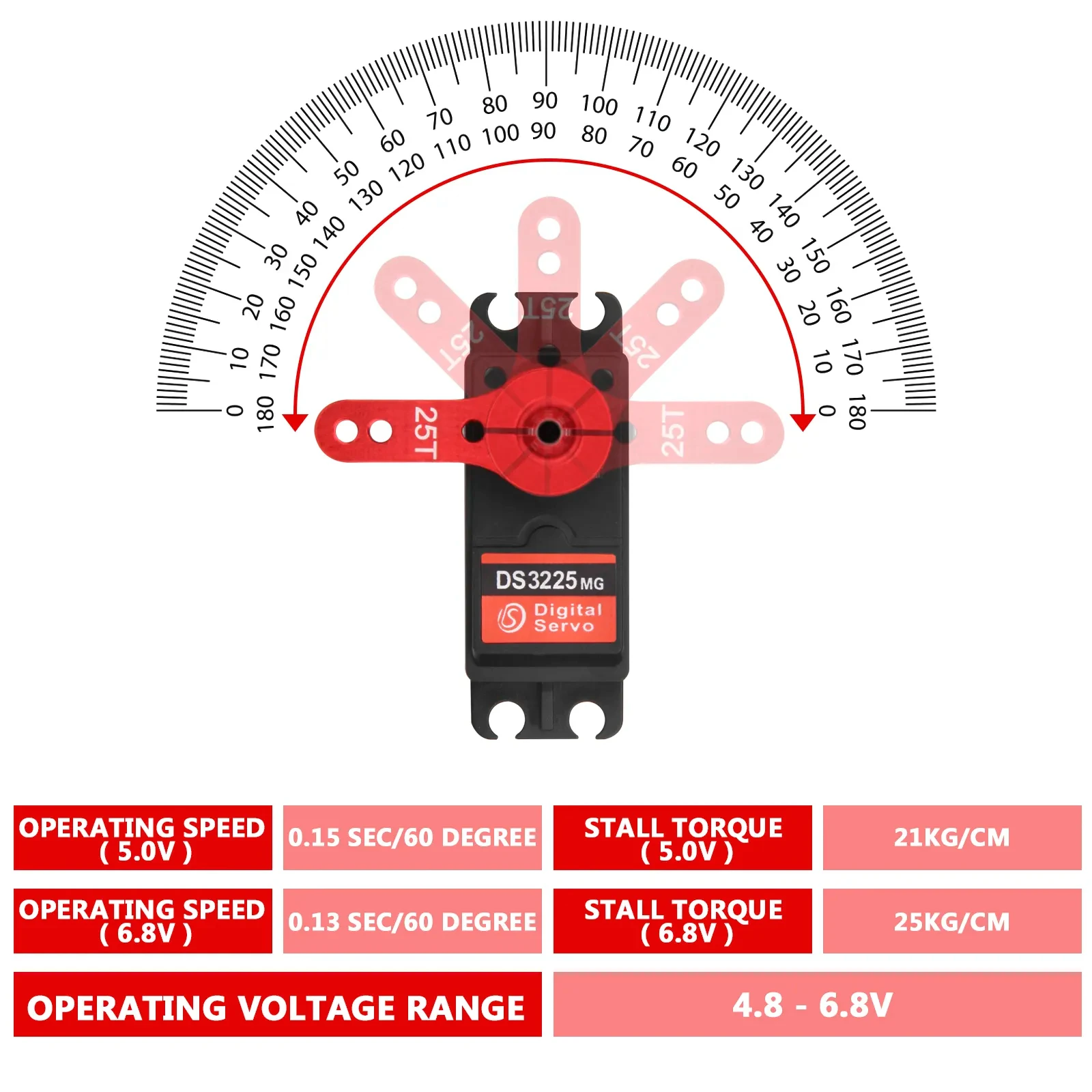

Specifications:
Brand: DSSERVO
Item: DSSERVO DS3225 Digital Servo
Operating voltage: 4.8 - 6.8V
Operating speed ( 5.0V ): 0.15 sec/60 degree
Operating speed ( 6.8V ): 0.13 sec/60 degree
Stall torque ( 5.0V ): 21kg/cm
Stall torque ( 6.8V ): 25kg/cm
Dead band: 3μs
Working frequency: 50-333Hz
Connector wire: About 300mm
Gear type: Metal
Motor Type: DC motor

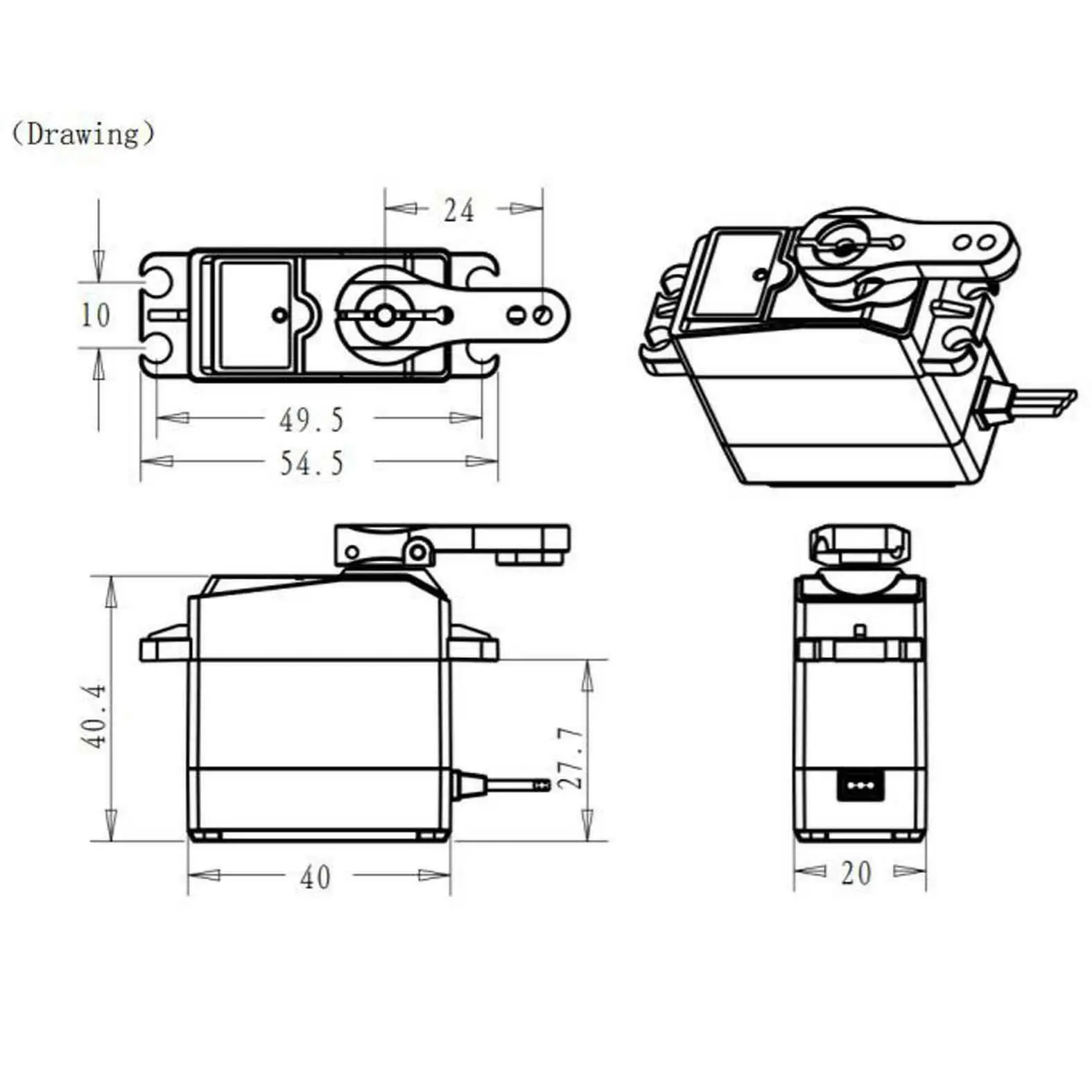

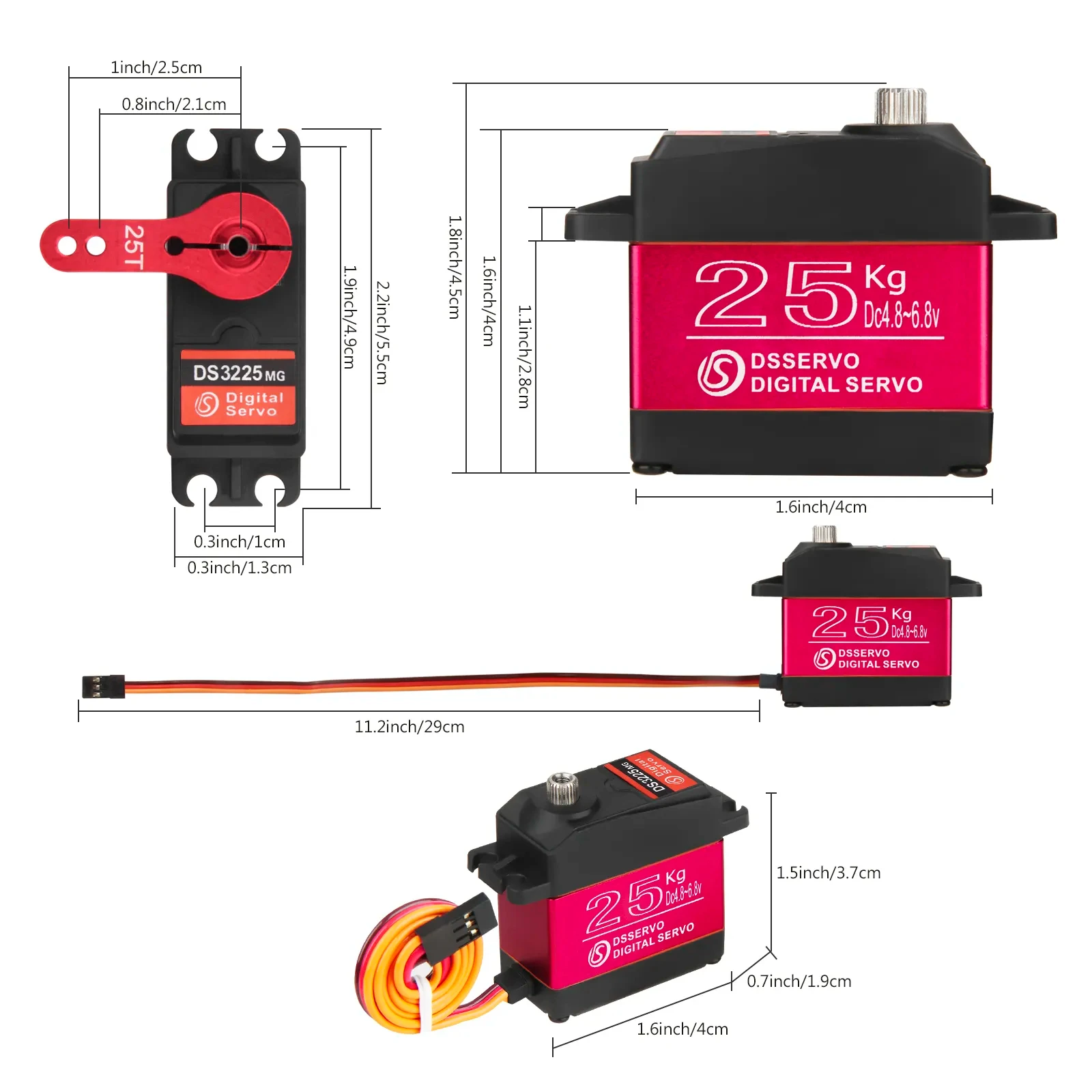

Size: 40 * 20 * 40.5mm
Weight: 67g
Note: There could be some deviations due to manual measurement or slight color difference as the result of shooting scene
Package information:
Package size: 12 * 8 * 2cm / 4 * 3 * 0.78in
Package weight: 73g
Poly Bag package

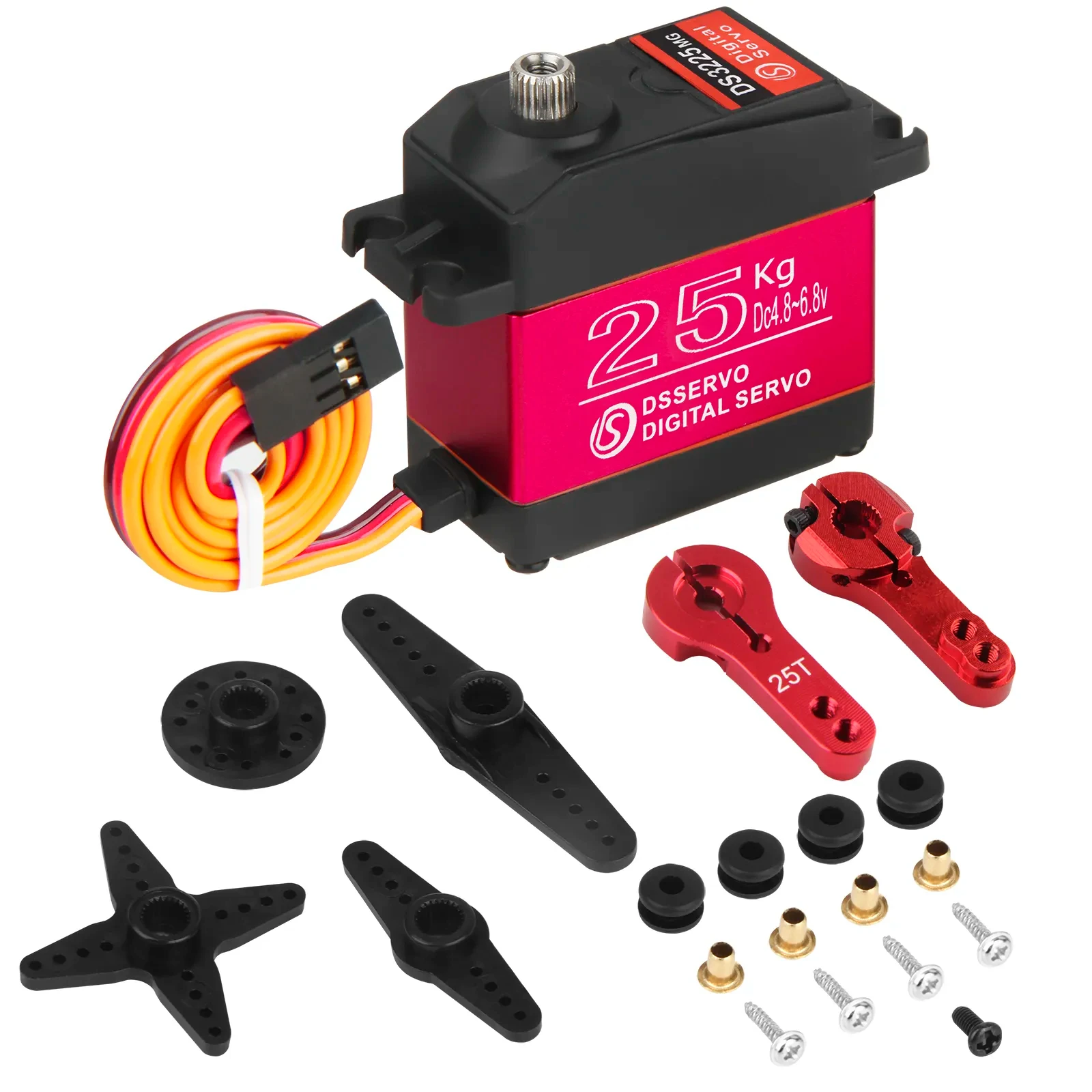

Package list:
1 * DS3225 25kg Digital Servo
1 * 25T Metal Servo arm(Red or Black or Blue)
